Emerson '21

### Biomedical Data Science: <br>Big Data Science Gone Sideways
<br>

Joshua T. Vogelstein | <img src="assets/img/email-logo.png" align='top' width=25>[jovo@jhu.edu](mailto:jovo@jhu.edu),
<img src="assets/img/twitter-logo.png" align='top' width=25><a href="https://twitter.com/neuro_data" >@neuro_data</a>, <img src="assets/img/home-logo.png" align='top' width=21>[neurodata](https://neurodata.io/)
<br>
[Biomedical Engineering](https://www.bme.jhu.edu/) | [Johns Hopkins University](https://www.jhu.edu/)

---

class:middle

# (Big) Data Science

---
### Data Science Definition <br>(paraphrasing wikipedia)

a field that develops and uses computational statistics to extract knowledge from (big) data, and applies that knowledge across a broad range of applications

---
### What is 'Big Data'?

- Consider Amazon ledger
- Billions of records/samples/rows (eg, transactions)
- Hundreds of features (eg, user, time, $, location, payment, etc...)

![](images/tall_skinny.png)

"Tall & Skinny"

---

### What are the big data challenges?

- Basically an infinite amount of data
- Need compute systems that can store/process it
- Existing ML framework theory is perfect for this

---
### Formal Classical ML Framework

- Let $X_i$ be a feature vector (e.g., a cancer genome for subject $i$)
- Let $Y_i$ be a class label (e.g., pancreatic cancer)
- Given $n$ samples of training data, $(X_i, Y_i)$
- Assumption 1:  training data sampled from some distribution
- Given a new test sample, $(X,Y)$
- Assumption 2: test data are sampled from the same distribution
- Find an algorithm that predicts $Y$ accurately with a huge amount of data

---
### Classical ML Theory

- Under the above two assumptions
- if we get an infinite amount of data
  - then we have algorithms that will perform optimally

.ye[Implication: just keep getting more and more data, and build bigger machines]

- And that works great for many 'web-scale' problems
- $>$10B USD invested annually
- ~3M data scientists

---
### What are the issues?

--
- Anti-democratic

--
- Anti-environment

--
- Racist chatbots

--
- Biomedical data

---

class:middle

# Biomedical Data Science

---
### Biomedical Data Science Definition <br>(according to wikipedia)

<br><br><br><br><br>
(crickets)

---

### Scale of biomedical data science

--
- \# of people would benefit from better biomedical data science?
--

- ~10,000,000,000
--

- \# of webpages with "biomedical data science"?
--

- ~100,000
--

- \# of "biomedical data scientists" are there?
--

- ~100
--

.ye[Implications: Biomedical data science is the most important non-discipline in the world, imho.]

---
### What is 'Biomedical Data'?

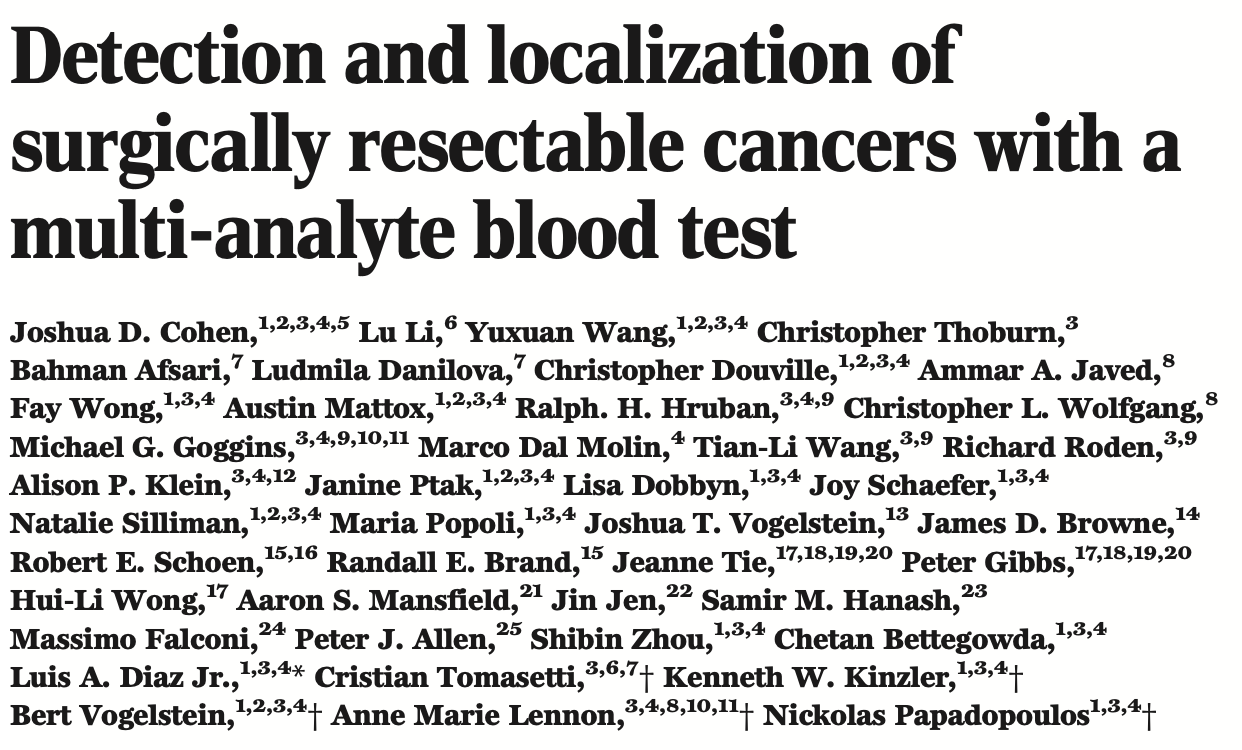

- Consider CancerSEEK
- Billions of features (eg, base pairs)
- Hundreds of samples/subjects (eg, patients)

![:scale 45%](images/short_fat.png)
![:scale 45%](images/CancerSEEK.png)

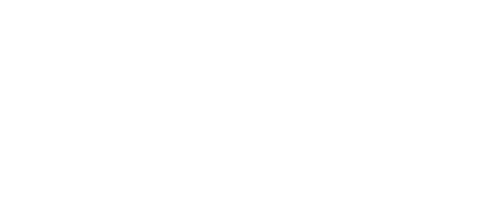

"Short & Fat" (we will call this .r[$D_{care}$])

---

### What is the main challenge?

.pull-left[
![:scale 100%](images/Alices_Restaurant.jpeg)

]

.pull-right[
Existing ML
1. framework
2. theory
3. algorithms

are designed for tall & skinny  (web-scale) data, and are therefore  .ye[inappropriate and inadequate] for many real world biomedical data science problems.

]

---

### What will we do?

1. Devise formal framework for biomedical data science
2. Develop theory to guide algorithmic & experimental design
3. Design algorithms with provable guarantees
4. Demonstrate success in real world biomedical data experiments

---
class: middle

# Devise Framework

---
### Formal Biomedical ML Framework

---
### How is that even possible?

Transfer information from
- subject matter experts
- other related datasets

---

### Learning Efficiency

Let
- $f$ be some learning algorithm  (eg, deep net)
- .ye[$\mathcal{E}_f$] be some .ye[error metric] we care about (eg, squared error)
- .r[$D_{care}$] be some dataset we .r[care] about (eg, pancreatic cancer)
- .green[$D_{other}$] be an .green[other] dataset (eg, all other cancer data)

- If $f$ is able to reduce .ye[error] via .green[$D_{other}$],
  - then $f$ learned from .green[$D_{other}$] (aka, $f$ transferred)

.footnote[Geisa et al. [Towards a theory of out-of-distribution learning](https://arxiv.org/abs/2109.14501), arXiv, 2021.
]

---

### Transfer is the key

- Efficient .ye[transfer] is the key to biomedical data science success.
- Literature has .ye[never] evaluated algorithms on this basis
  - fixated on accuracy
- In real world biomedical data science challenges (eg, cancer datasets), .r[$D_{care}$] is small

Learning efficiency emerges from a  .ye[general theoretical framework] we have introduced, which is better suited for real-world biomedical data science challenges.

.r[Take home message 1: For biomedical data science<br>
- algorithms that simply improve with more data are inadequate;
- we require algorithms that transfer information more efficiently.]

---
class: middle

# Develop Theory

---

### Classical ML Theory

- Weak learning: $f$ can do better than chance  with sufficient data
- Strong learning: $f$ can do arbitrarily close to optimal with sufficient data
- Weak learner theorem: if a problem is weakly learnable, it is also strongly learnable
- Implications: if $f$ is doing better than chance, get more data to improve performance

But this does not deal at all with the need to transfer...

---

### Out-of-Distribution Learning Theory

- Let $X_i$ be a feature vector (e.g., a cancer genome for subject $i$)
- Let $Y_i$ be a class label (e.g., pancreatic cancer)
- Given $n$ samples of training .r[$D_{care}$] data, .r[$(X_i, Y_i)$]
- Assumption 1:  training data sampled from some distribution
- Given a new .lb[test] sample, .lb[$(X,Y)$]
- Assumption 2: .lb[test] data are sampled from the same distribution
- Given a $m$ other samples .green[$D_{other}$], .green[$(X_j,Y_j)$]
- Assumption 3: <em style="color:red">$D\_{care}$</em>
and
<em style="color:#00cc44">$D\_{other}$</em>
are sampled from the <del>same</del> .ye[different] distributions
- Find an algorithm that predicts .lb[$Y$] accurately leveraging both <em style="color:red">$D\_{care}$</em>
and
<em style="color:#00cc44">$D\_{other}$</em>
.

.footnote[Geisa et al. [Towards a theory of out-of-distribution learning](https://arxiv.org/abs/2109.14501), arXiv, 2021.
]
---

### OOD Learning Theory

- Weak learning: $f$ can do better using
<em style="color:red">$D\_{care}$</em>
 and
 <em style="color:#00cc44">$D\_{other}$</em>
than using
 <em style="color:red">$D\_{care}$</em>
alone
- Strong learning: $f$ can do arbitrarily close to optimal with sufficiently large .green[$D_{other}$]
- Weak OOD learner theorem: if a problem is weakly learnable, it is .ye[not necessarily] strongly learnable
- Implications: if $f$ is doing better than chance, getting more data is .ye[not] guaranteed to improve performance

.r[Take home message 2: For biomedical data science
- more data are inadequate;
- we require more informative data + algorithms that transfer information more efficiently.]

---
class: middle

# Design Algorithms

---

### Algorithm Schemata

![:scale 90%](images/learning_schema_new.png)

A. Single learners: SVM, decision tree, deep nets <br>
B. Ensembling decisions: random forest, gradient boosting tree, network ensembles (win all challenges and deployed in practice) <br>
C. Ensembling representations: new idea

.footnote[Vogelstein et al. [Ensembling Representations for Synergistic Lifelong Learning with Quasilinear Complexity](https://arxiv.org/abs/2004.12908), arXiv, 2020.]

---

## CIFAR 10x10

- CIFAR 100 is an image dataset with 100 categories of images.
- We create 10 tasks, each with 10 categories of images.
- We train a separate internal representation for each task.
- We ensemble the internal representations across tasks.
- We evaluate performance sequentially.

<img src="images/l2m_18mo/cifar-10.png" style="position:absolute; left:150px; width:420px;"/>

---

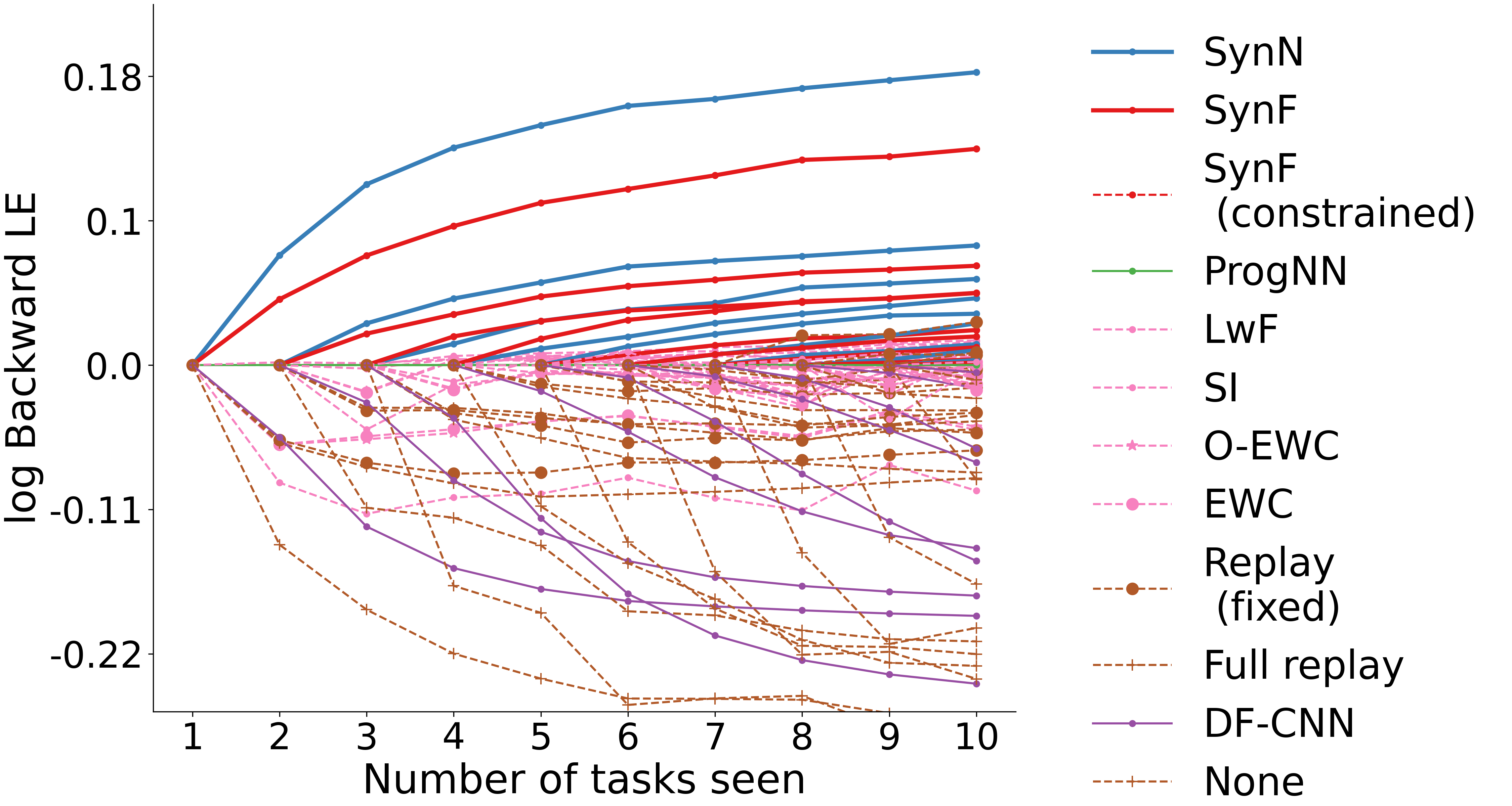

### Ensembling Representations<br>Positive Forward Transfer

![:scale 49%](images/slide_fte.png)
![:scale 49%](images/slide_bte.png)

.r[Take home message 3: For biomedical data science
- prior state of the art algorithms algorithms fail to transfer;
- ensembling representations uniquely achieves both forward and backward transfer.]

---
class: middle

# Demonstrate Success

---

### What are the real-world  problems?

A Concrete Example: COVID-19

1. Volume: multiple short & fat datasets, instead of 1 tall & skinny
2. Variety: data includes historical diagnoses, procedures, etc.
3. Velocity: standards of care were changing rapidly
4. Veracity: data manually labeled, no codes, missing data, etc.
5. Variability: data came from multiple disparate sources
6. priVacy: we could not legally/ethically share across datasets

These are the .ye[6 Vs] of biomedical data

---

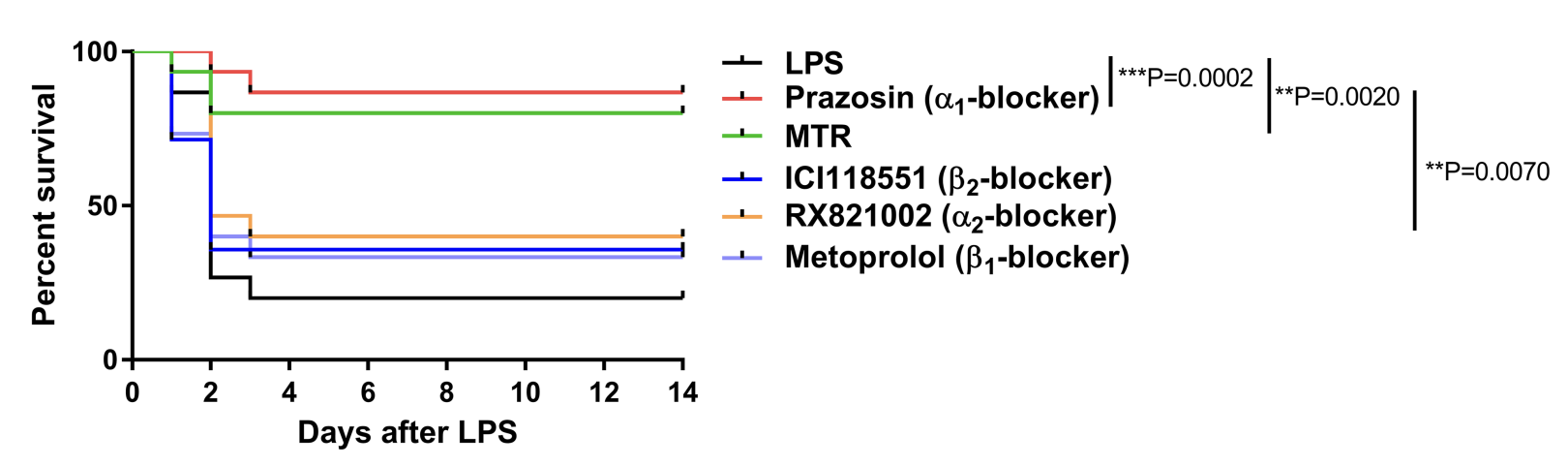

### Background: 2018

![:scale 100%](images/Staedtke18.png)
![:scale 100%](images/Staedtke18_Fig6a.png)

---

### Background: 2020

- Jan: COVID hits the world
- Feb: Evidence grows that cytokine release syndrome is associated with death
- Mar: Dad realizes treatment plan may already be available
- alpha blockers are cheap, generic, orally administered, globally available, with very low side-effects
- April-June: Jovo tries to get a large enough .r[$D_{care}$] and fails
- July: Jovo finds multiple "short & fat" .r[$D_{care}$] datasets
- Aug: Jovo++ designs new methods to combine these datasets based on our  framework

---

### Our Strategy

- Transfer from subject matter experts, by identifying relevant:
    - procedures,
    - diagnoses,
    - drugs,
    - timelines,
    - etc.
- Transfer from other data:
  - Learn a separate causal model on multiple small datasets.

  - Rather than sharing data, share internal representations.

Now we have federated nonlinear causal models that respect patient privacy.

---

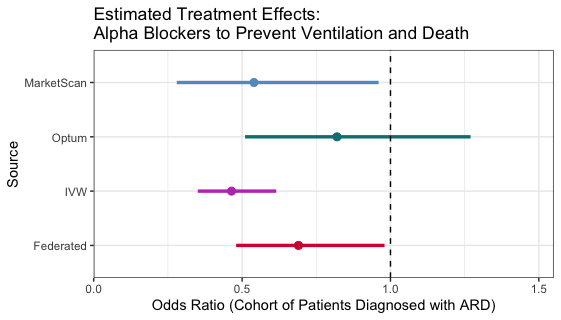

### Alpha-Blocker Study

![:scale 60%](images/MS_Optum_Federated_Emerson.png)

- Ensembling decisions yields an impossible result.
- Ensembling representations improves estimated effect size.
- This motivated two ongoing COVID-19 trials using alpha blockers.
- This treatment will also work on COVID-22, MERS-24, flu, etc.

.r[Take home message 4: These ideas solve life-threatening, real-world data problems for which classical methods fail.]

---
class: middle

# Discussion

---
### Summary

- Biomedical data science is wide open
  - it impacts literally everyone
  - it is not an established field
  - it has unique challenges unmet by other approaches.
- We leverage biomedical expertise with statistical insight to:
    1. devise framework for biomedical data science
    2. develop theory to guide experiments & algorithms
    3. design algorithms with provable guarantees
- We successfully applied these ideas to real-world COVID data addressing each of the 6 V's of biomedical data

---
### Future Implications

- Our application shows methods are nimble
- Many cancers afflict a small number of people
- All cancer (and any other biomedical data science application) could benefit from this kind of approach
- Our work is imminently commercializable
  - Lots of consulting
  - Multiple start-ups
  - Google and Microsoft deploy our algorithms already

---
### Existing funding challenges

- NIH does not grok data science
- NSF will not fund medicine
- DARPA does not care about ailments that don't kill soldiers
- Foundations are our only hope
- This work is expensive (the data are still big, just 'gone sideways')

---

### Theory & Methods Publications

1. A Geisa, et al. [Towards a theory of out-of-distribution learning](https://arxiv.org/abs/2109.14501), arXiv, 2021.
1. JT Vogelstein, et al. [Ensembling Representations for Synergistic Lifelong Learning with Quasilinear Complexity](https://arxiv.org/abs/2004.12908), arXiv, 2020.
1. X, Haoyin, et al. [Streaming Decision Trees and Forests](https://arxiv.org/abs/2110.08483), arXiv, 2021.
1. CE Priebe, et al. [Modern Machine Learning: Partition and Vote](https://doi.org/10.1101/2020.04.29.068460), bioRxiv, 2020.
1. R Guo, et al. [Estimating Information-Theoretic Quantities with Uncertainty Forests](https://arxiv.org/abs/1907.00325). arXiv, 2019.
1. R Perry, et al. [Manifold Forests: Closing the Gap on Neural Networks](https://openreview.net/forum?id=B1xewR4KvH). arXiv, 2019.
1. C Shen and J. T. Vogelstein. [Decision Forests Induce Characteristic Kernels](https://arxiv.org/abs/1812.00029). arXiv, 2019.
1. M Madhya, et al. [BLOCKSET: Reducing Inference Latency for Tree Ensemble Deployment](https://dl.acm.org/doi/10.1145/3447548.3467368). KDD '21.

1. R Xiong, et al. [Federated Causal Inference in Heterogeneous Observational Data](https://papers.ssrn.com/sol3/papers.cfm?abstract_id=3888599). SSRN, 2021.

---

### Real-World Data Publications

.small[
1. J Cohen, et al. [Detection and localization of surgically resectable cancers with a multi-analyte blood test](https://www.science.org/doi/10.1126/science.aar3247). Science, 218.
2. M Powell, et al. [Ten Rules for Conducting Retrospective Pharmacoepidemiological Analyses: Example COVID-19 Study](https://www.frontiersin.org/articles/10.3389/fphar.2021.700776/full), Frontiers in Pharmacology, 2021.
3. A Koenecke, et al. [Alpha-1 adrenergic receptor antagonists to prevent hyperinflammation and death from lower respiratory tract infection](https://elifesciences.org/articles/61700), Elife, 2021.
4. L Rose, et al. [The association between Alpha-1 adrenergic receptor antagonists and in-hospital mortality from COVID-19](https://www.frontiersin.org/articles/10.3389/fmed.2021.637647/full), Frontiers in Medicine, 2021.
5. MF Konig, et al. [Preventing cytokine storm syndrome in COVID-19 using alpha-1 adrenergic receptor antagonists](https://www.jci.org/articles/view/139642). The Journal of Clinical Investigation, (7)130:3345-3347, 2020.
6. MA Haendel, et al. [The National COVID Cohort Collaborative (N3C): Rationale, design, infrastructure, and deployment](https://academic.oup.com/jamia/article/28/3/427/5893482), Journal of the American Medical Informatics Association, 2020.
7. S Li, et al. [COVID-19 outcomes among hospitalized men with or without exposure to alpha-1-adrenergic receptor blocking agents](https://www.medrxiv.org/content/10.1101/2021.04.08.21255148v1.full), medRxiv, 2021.
8. T Zuzul, et al. [Dynamic Silos: Increased Modularity in Intra-organizational Communication Networks during the Covid-19 Pandemic](https://arxiv.org/abs/2104.00641), arXiv, 2021.
]

---
### Acknowledgements

<!-- <div class="small-container">
  <img src="faces/ebridge.jpg"/>
  <div class="centered">Eric Bridgeford</div>
</div>

<div class="small-container">
  <img src="faces/pedigo.jpg"/>
  <div class="centered">Ben Pedigo</div>
</div>

<div class="small-container">
  <img src="faces/jaewon.jpg"/>
  <div class="centered">Jaewon Chung</div>
</div> -->

<div class="small-container">
  <img src="faces/yummy.jpg"/>
  <div class="centered">yummy</div>
</div>

<div class="small-container">
  <img src="images/family3.png"/>
  <div class="centered">family</div>
</div>

<div class="small-container">
  <img src="faces/earth.jpg"/>
  <div class="centered">earth</div>
</div>

<div class="small-container">
  <img src="faces/milkyway.jpg"/>
  <div class="centered">milkyway</div>
</div>

##### JHU Collaborators

<div class="small-container">
  <img src="faces/cep.png"/>
  <div class="centered">Carey Priebe</div>
</div>

<div class="small-container">
  <img src="faces/alig.jpg"/>
  <div class="centered">Ali Geisa</div>
</div>

<!-- <div class="small-container">
  <img src="faces/bruce_rosen.jpg"/>
  <div class="centered">Bruce Rosen</div>
</div>

<div class="small-container">
  <img src="faces/kent.jpg"/>
  <div class="centered">Kent Kiehl</div>
</div> -->

<!-- <div class="small-container">
  <img src="faces/mim.jpg"/>
  <div class="centered">Michael Miller</div>
</div>

<div class="small-container">
  <img src="faces/dtward.jpg"/>
  <div class="centered">Daniel Tward</div>
</div> -->

<!-- <div class="small-container">
  <img src="faces/vikram.jpg"/>
  <div class="centered">Vikram Chandrashekhar</div>
</div>

<div class="small-container">
  <img src="faces/drishti.jpg"/>
  <div class="centered">Drishti Mannan</div>
</div> -->

<div class="small-container">
  <img src="https://raw.githubusercontent.com/neurodata/neurodata.io/deploy/source/images/people/mike-powell.jpg"/>
  <div class="centered">Mike Powell</div>
</div>

<div class="small-container">
  <img src="faces/meghana.png"/>
  <div class="centered">Meghana Madhya</div>
</div>

<div class="small-container">
  <img src="faces/rguo.jpg"/>
  <div class="centered">Richard Gou</div>
</div>

<div class="small-container">
  <img src="faces/ronak.jpg"/>
  <div class="centered">Ronak Mehta</div>
</div>

<div class="small-container">
  <img src="faces/jayanta.jpg"/>
  <div class="centered">Jayanta Dey</div>
</div>

<div class="small-container">
  <img src="faces/will.jpg"/>
  <div class="centered">Will LeVine</div>
</div>

##### Microsoft Research

<div class="small-container">
  <img src="faces/chwh-180x180.jpg"/>
  <div class="centered">Chris White</div>
</div>

<div class="small-container">
  <img src="faces/weiwei.jpg"/>
  <div class="centered">Weiwei Yang</div>
</div>

<div class="small-container">
  <img src="faces/jolarso150px.png"/>
  <div class="centered">Jonathan Larson</div>
</div>

<div class="small-container">
  <img src="faces/brtower-180x180.jpg"/>
  <div class="centered">Bryan Tower</div>
</div>

##### Funding: MSR, DARPA L2M, NSF {CAREER, AI Institute Planning}

##### Affiliations: {[BME](https://www.bme.jhu.edu/),[CIS](http://cis.jhu.edu/), [ICM](https://icm.jhu.edu/), [KNDI](http://kavlijhu.org/)}@[JHU](https://www.jhu.edu/)

##### Contact: <img src="assets/img/email-logo.png" align='bottom' width=25>[jovo@jhu.edu](mailto:jovo@jhu.edu)  |   <img src="assets/img/twitter-logo.png" align='bottom' width=25>[@neuro_data](https://twitter.com/neuro_data) | <img src="assets/img/home-logo.png" align='bottom' width=21>[neurodata](https://neurodata.io)

</div>

---

.footnote[Questions?]
