This guide demonstrates how to add point annotations manually to a neuroglancer view. To generate a starting neuroglancer view, we recommend following one of the viz links from OCP. For this demo, we are going to use this neuroglancer view.

Open JSON editor

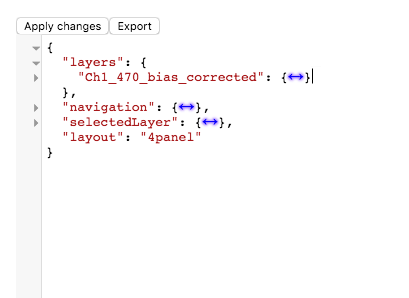

Click on the JSON editor (top right corner of the web browser and looks like {}). The results should look something like:

json editor

Open layers

Click the blue arrows next to “layers”. The result should look like this:

layers

Add annotation layer

Now, add a comma at the end of the line underneath “layers”. Then copy and paste this on the next line:

"annotations":
{
    "type":"pointAnnotation",
    "points":[]
}

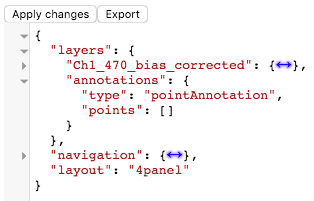

The result should look like this: pointAnnotation

Select the annotation type

Right-click on the new channel called “annotations”. Now click on button to the right of the color (highlighted in blue in image below):

"add point

Add points

Now that you have selected the point annotations, you can ctrl + click on any location in the image and yellow spheres will show up at those locations. The locations are stored in the JSON editor and can be accessed at any time by clicking the {} in the top right of the web browser.

Key combinations

  • Ctrl+LMB: Add Annotation
  • Ctrl+RMB: Select Annotation
  • Alt+LMB: Move Annotation
  • Ctrl+Alt+RMB: Delete Annotation

Share

To share these data, click the icon in the top right navigation aria. This will change the URL field in the browser to a short one that can be easily copied and shared. The URL should be similar to this: https://viz.neurodata.io/?json_url=https://json.neurodata.io/v1?NGStateID=c-D79XYYWJngLw
